MND Equipment

Maclean Bolter PAVC Pump Medium Pressure/Super Charged Piston Pump

Regular price $11,278.40 CAD
Regular price Sale price $11,278.40 CAD
Sale Sold out

Parker Hydraulic Group

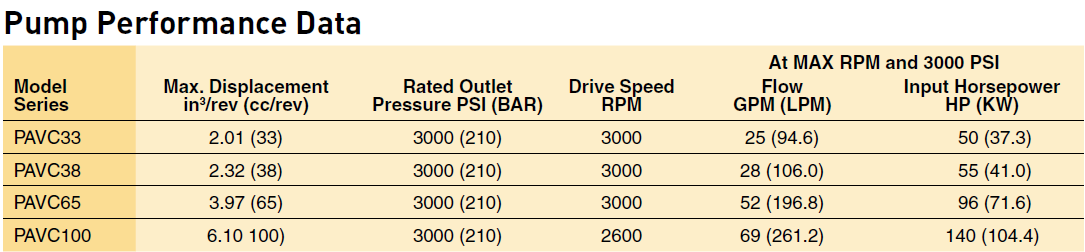

PAVC piston pumps are ideal for many applications with operating pressure up to 3000 PSI (210 BAR). These compact pump feature convenient cartridge style controls and carry a full pressure rating on most water glycol fluids.

Controls

  • Pressure Compensation
  • Load Sensing
  • Power (Torque) Limiting
  • Power and Load Sensing
  • Remote Pressure Compensation
  • Adjustable Maximum Volume Stop
  • Electrohydraulic Flow and Pressure
  • Low Pressure Standby



Key Features

  • High Strength Cast-Iron Housing
  • Built-In Supercharger Ensures High Speed Capability - 3000 RPM (2600 RPM PAVC100)
  • Sealed Shaft Bearing
  • Two Piece Design for Ease of Service
  • Cartridge Type Controls - Field Changeable
  • Replaceable Bronze Clad Port Plate
  • Airbleed Standard for Quick Priming
  • Hydrodynamic Cylinder Barrel Bearing
  • Thru-Shaft (PAVC100 Only)
  • Full Pressure Rating on Most Water Glycol Fluids
  • Pump Case and Shaft Seal are Subjected to Inlet Pressure Only
  • Filter and/or Cool Drain Line 100 PSI (7 bar) Maximum
